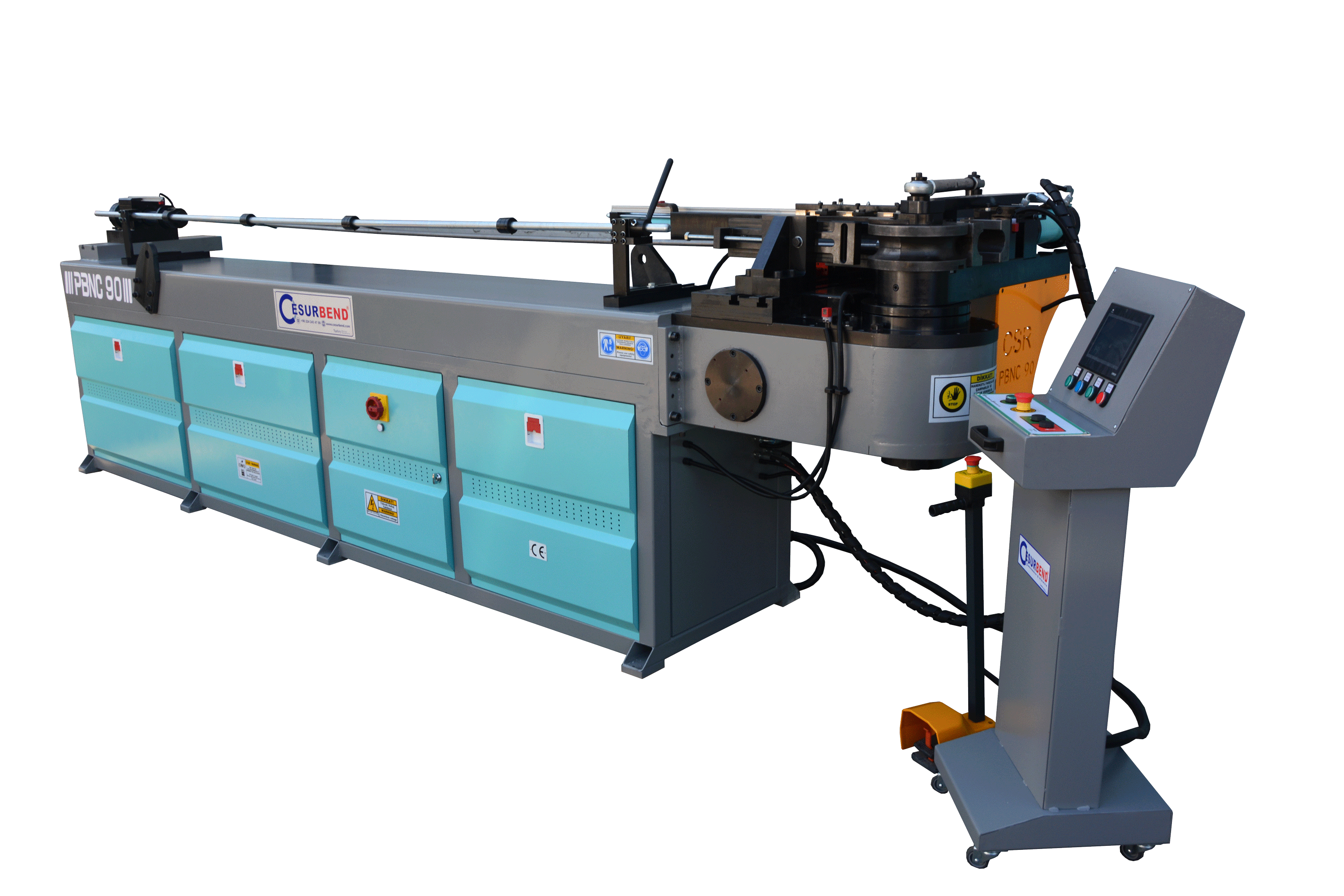

PBNC-90 Pipe & Tube Bending Machine

Ask Us For More Information

Contact Us

Download Our Machine Brochure

Download
slide 1
slide 1
slide 1
slide 1
slide 1
slide 1
  • Product Features :

  •
    -Quaternary Adjustable Gauge Distance Bracket
    -Chain twisting system
    -Geared motor driven
    -Touch screen control panel
    -Food pedal control
    -Hydraulic movement of the mandrel
    -Hydraulic recline movement
    -Hydraulic clamping movement
    -Hydraulic slide system
    -The machine is 4 pistons.
    -7"Color Touchscreen Display
    -15 sequential bending possibilities
    -100 program memory capacity programming
    -PLC Control Schneider



Technical Information
  • Model
  • PBNC-90 Pipe & Tube Bending Machine
  • Max. Pipe Diameter
  • 90
  • Max. Wall Thickness (mm)
  • 4
  • Max. Bending Angle (°)
  • 190
  • Bending Speed (rev/min)
  • 3-6
  • Max. Bending Radius (mm)
  • 250
  • Max.Hydraulic Pressure (bar)
  • 200
  • Pipe Loading Length (mm)
  • 4000
  • Bending Engine Power (kW)
  • 15
  • Hydraulic Motor Power (kW)
  • 5,5
  • Machine Width (mm)
  • 1300
  • Machine Length (mm)
  • 4600
  • Machine Height (mm)
  • 1400
  • Machine Weight (kg)
  • 2650
Usage Areas
