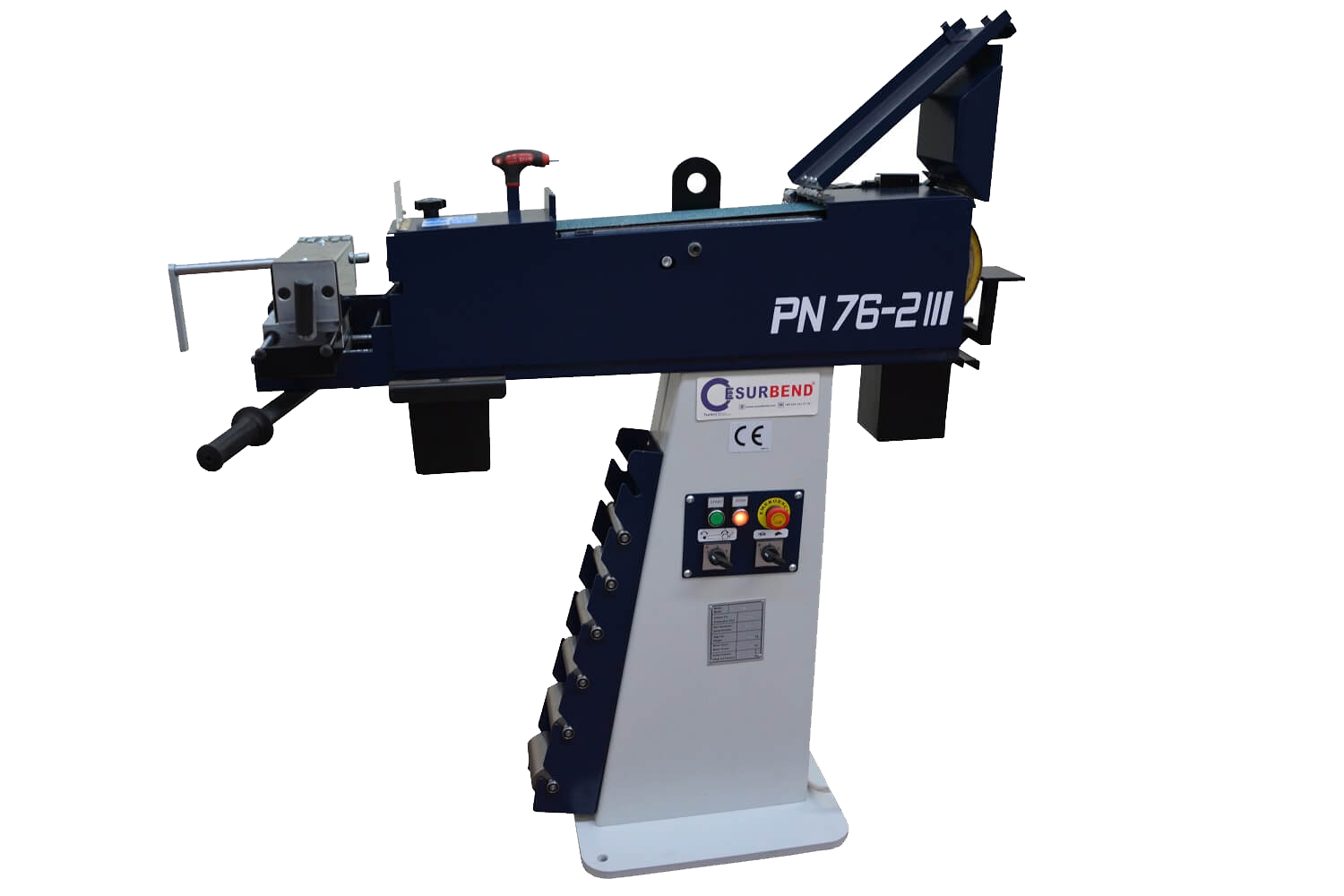

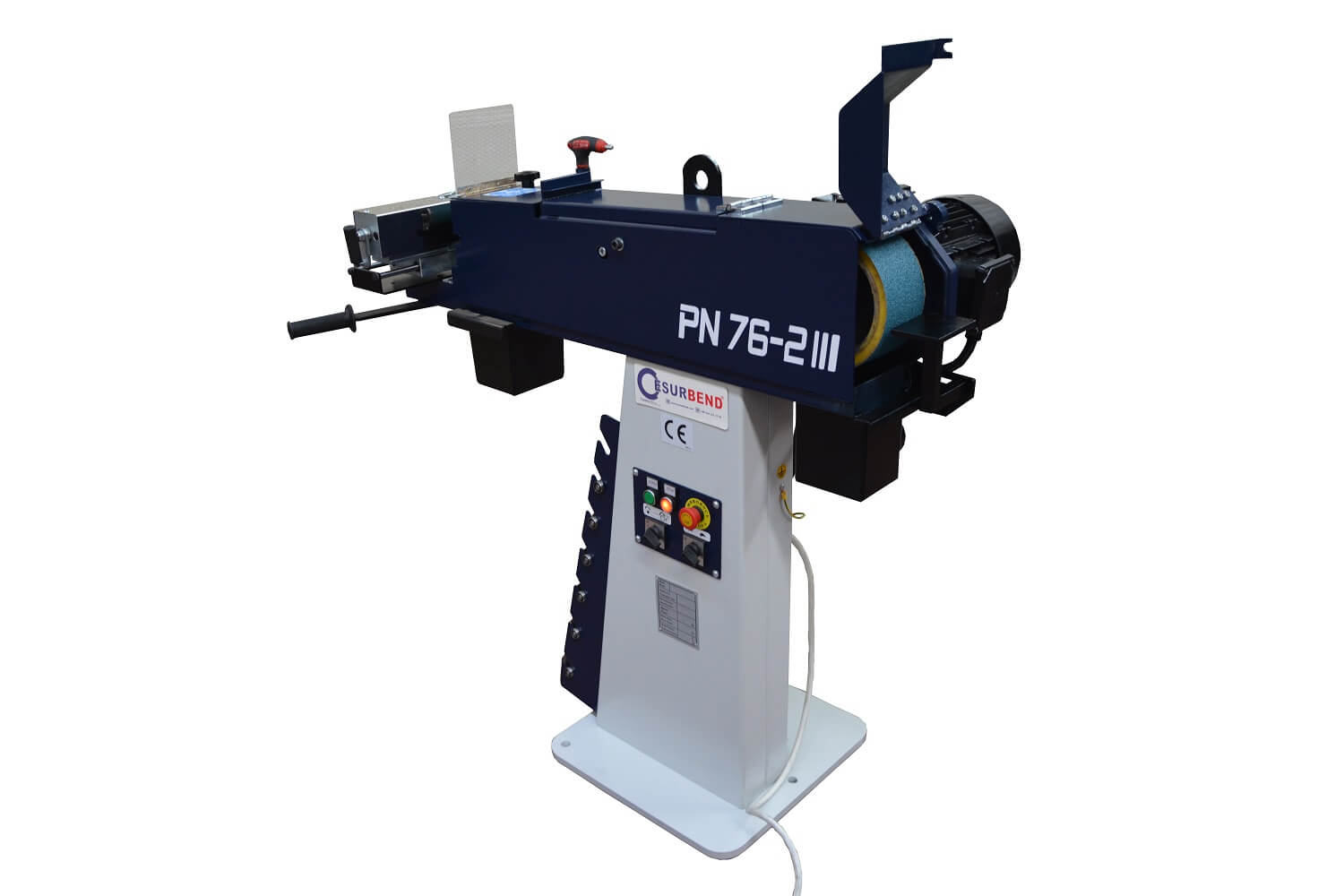

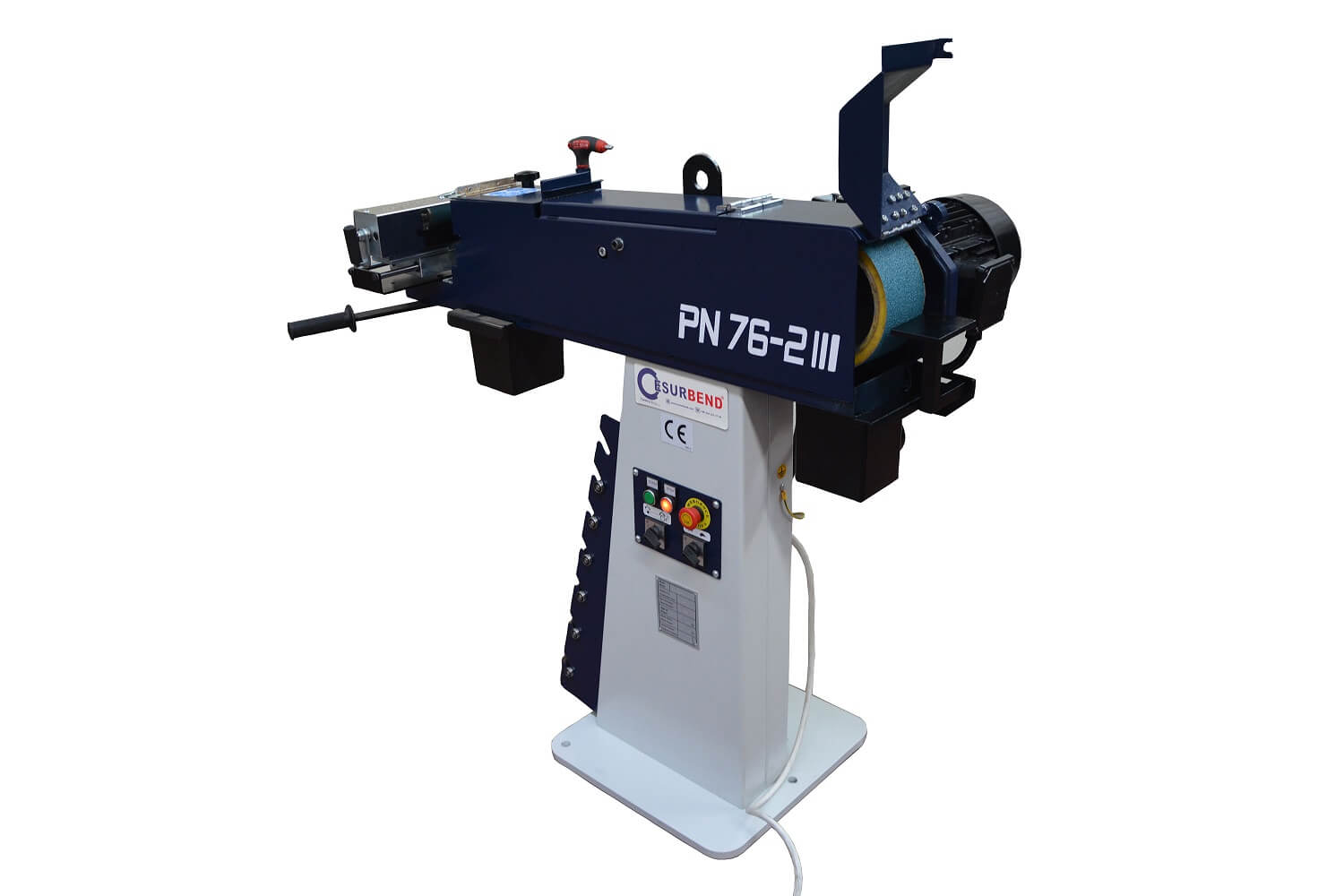

PN 76-2 Pipe & Tube Notching Machine
Ask Us For More Information
Contact UsDownload Our Machine Brochure
Download
- Product Features :
-Charge to easily ability to open suitable dovetails according to the pipe and tube diameters with the help of processing drum. -Ability to tighten and loosen the parts quickly as a result of moving clamp.-Ability to opening dovetails up to 60.-With hinged lid at the top of the machine grinding bearded materials facilities.-Double-sided fence with a measurement accuracy of the system.-Double Grinding Area-Double speed motor-Bi-Directional motor.png)
Technical Information
- Model
- PN 76-2 Pipe & Tube Notching Machine
- Capacity (mm)
- 20-76
- Engine Power (kW-d/dk)
- 2,4/3 kW 1500/3000 d/dk
- Mandrel Diameters (Ø)
- 25-32-42-48-51-60-76
- Abrasive Dimension (mm)
- 2000x100
- Machine Width (mm)
- 500
- Machine Length (mm)
- 1000
- Machine Height (mm)
- 1100
- Machine Weight(kg)
- 190
Usage Areas
