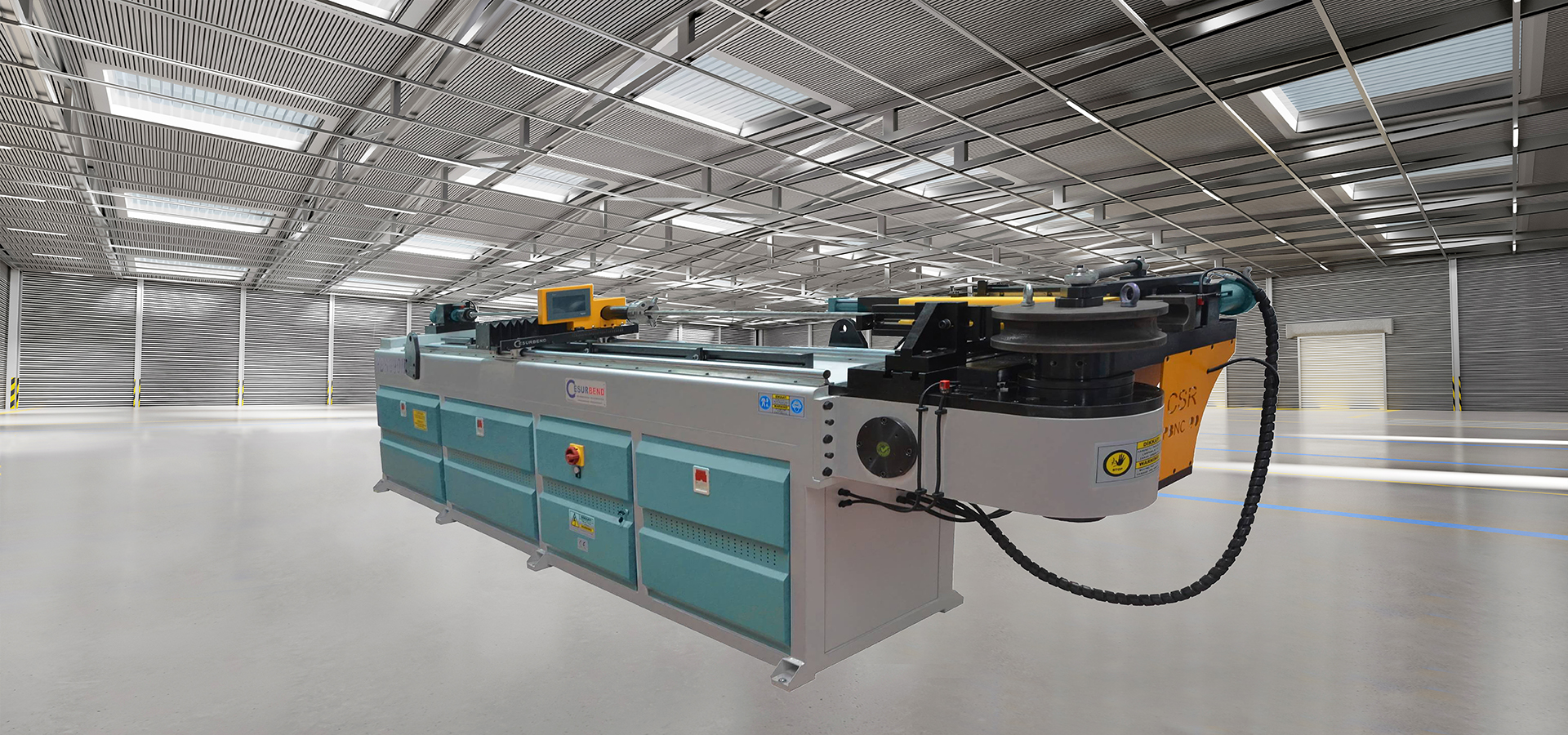

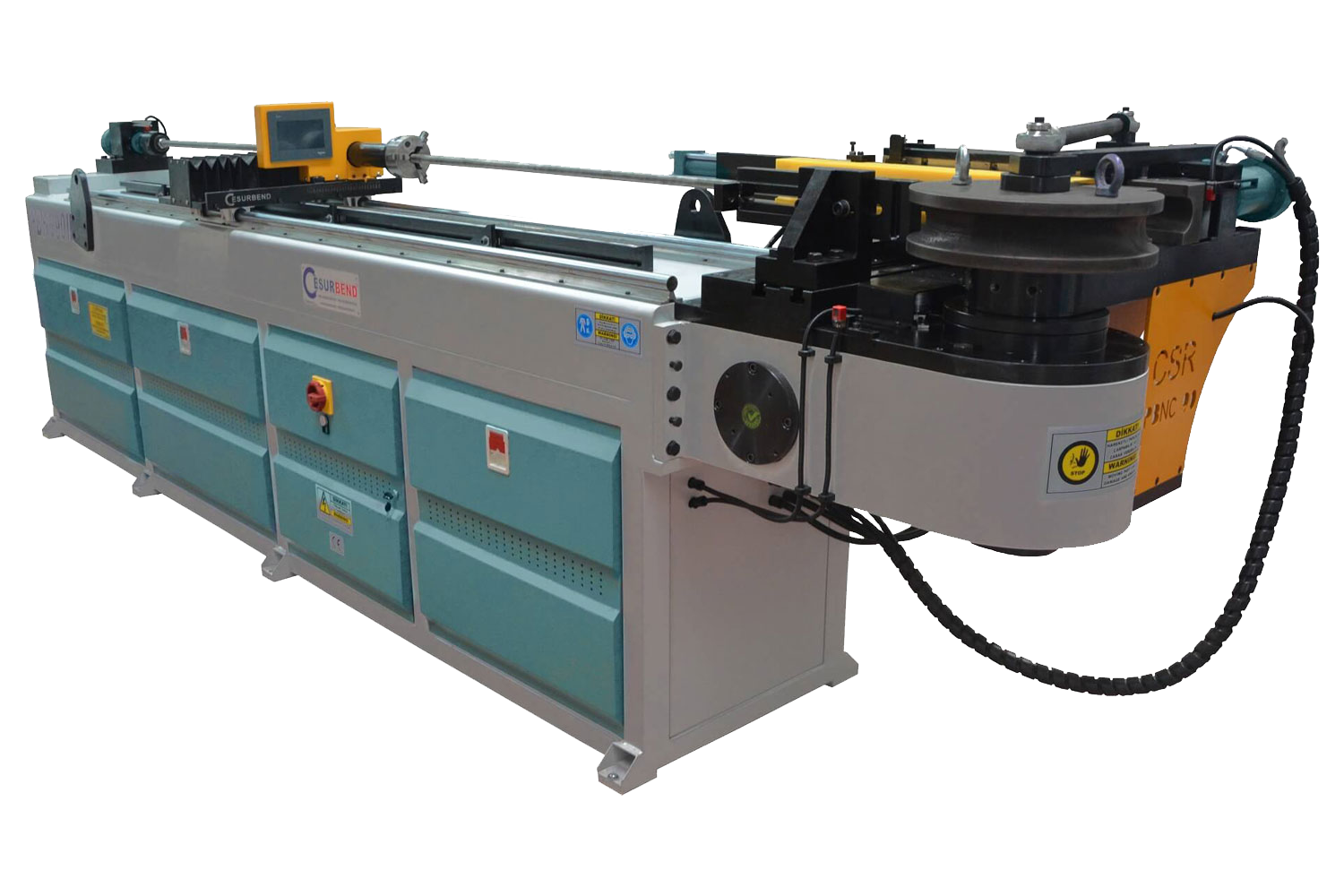

PBNC-90 A Pipe & Tube Bending Machine

Ask Us For More Information

Contact Us

Download Our Machine Brochure

Download
slide 1
  • Product Features :
  •

    Feeding &  Rotation Axis Digital Controll Hydraulic Pens Clamp

    The machine is 5 pistons.

    In our standard NC machines, using post-twist distance and rotating operator striking and paralelling devices, while getting results; you can do faster and error-free bending by following the progress and rotation positions of the bends made with our NC Car System machines.



Technical Information
  • Model
  • PBNC-90 A Pipe & Tube Bending Machine
  • Max. Pipe Diameter
  • 90
  • Max. Wall Thickness (mm)
  • 4
  • Max. Bending Angle (°)
  • 190
  • Bending Speed (rev/min)
  • 3-6
  • Max. Bending Radius (mm)
  • 250
  • Max.Hydraulic Pressure (bar)
  • 200
  • Pipe Loading Length (mm)
  • 3000
  • Bending Engine Power (kW)
  • 15
  • Hydraulic Engine Power (kW)
  • 5.5
  • Machine Width (mm)
  • 1400
  • Machine Length (mm)
  • 4500
  • Machine Height (mm)
  • 1600
  • Machine Weight (kg)
  • 3000

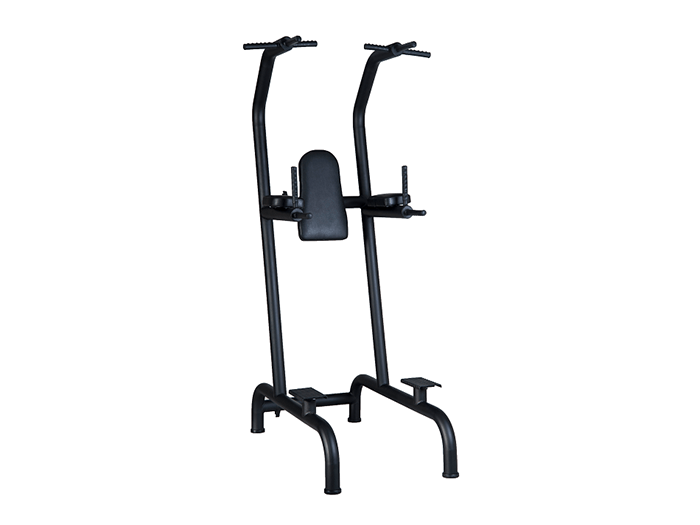

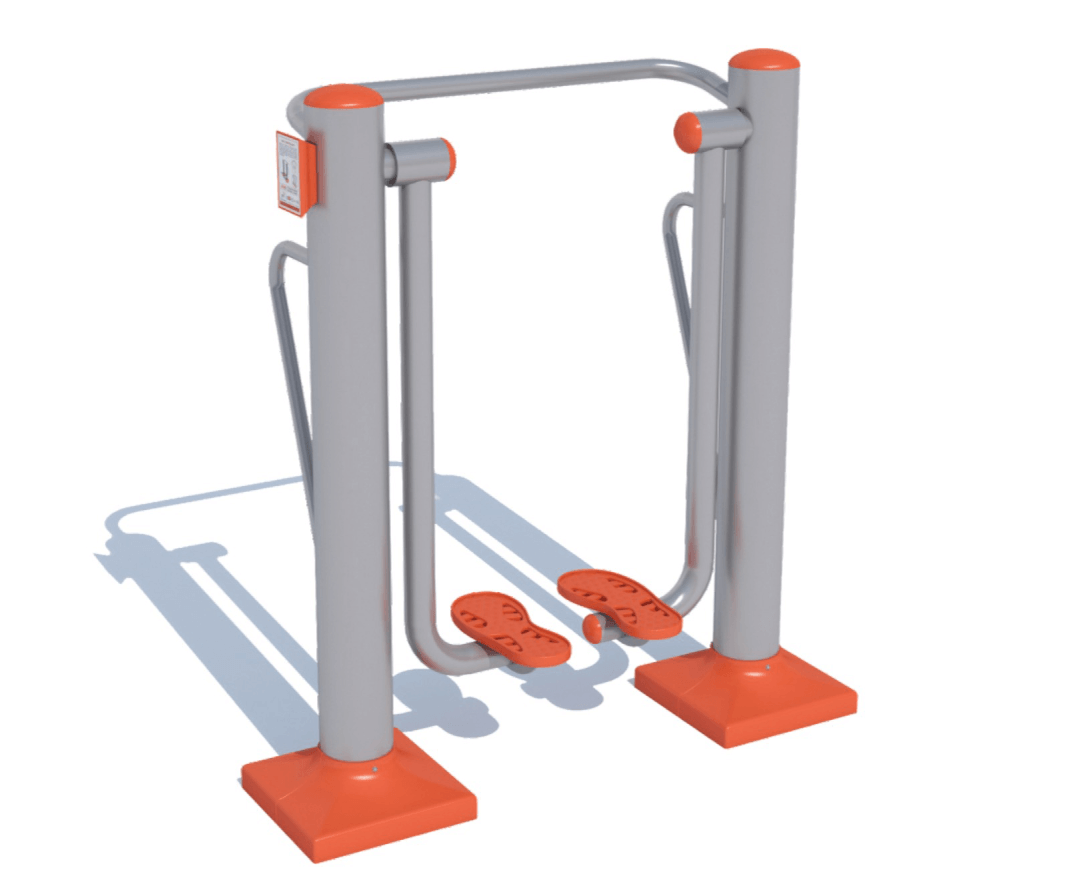

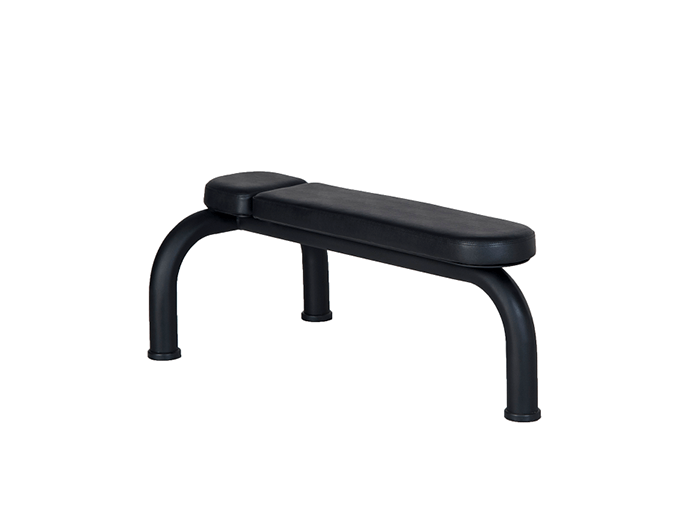

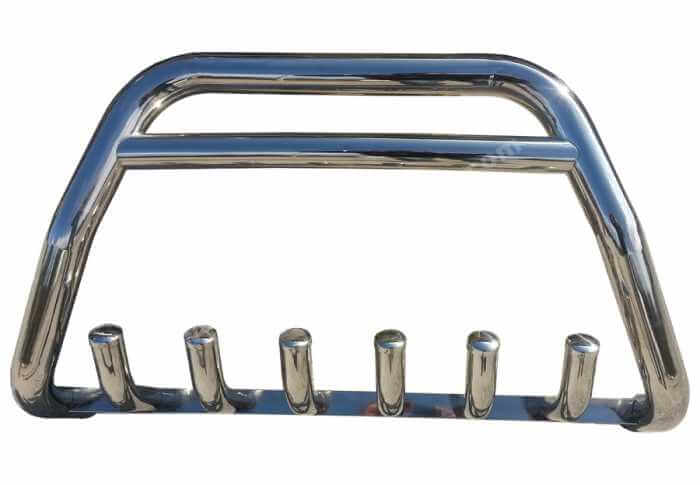

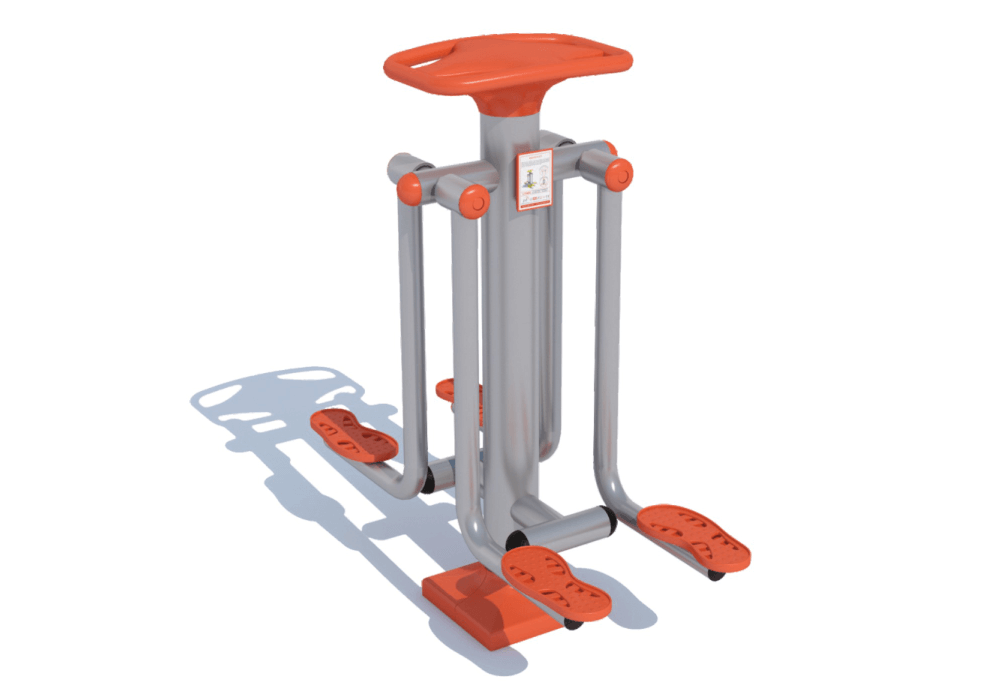

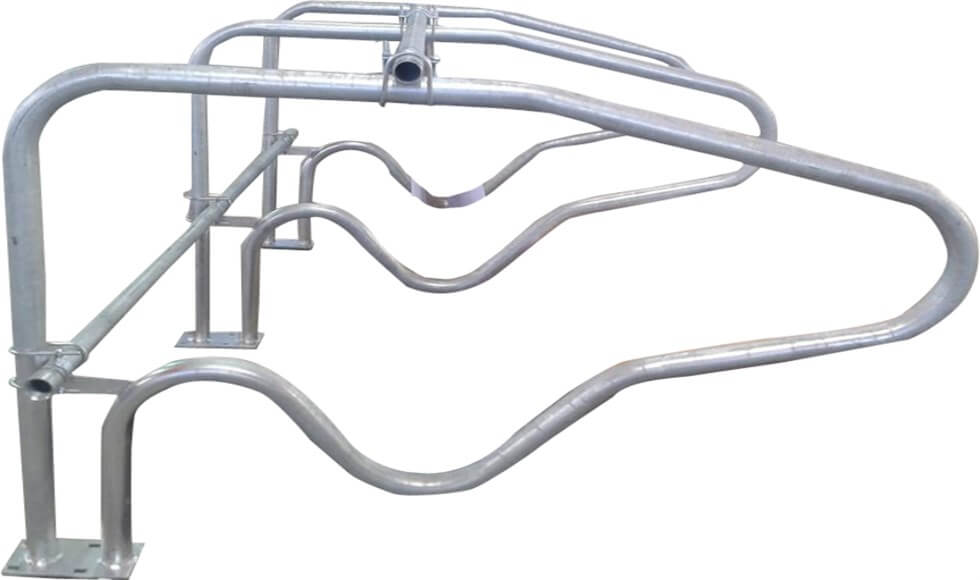

Usage Areas
