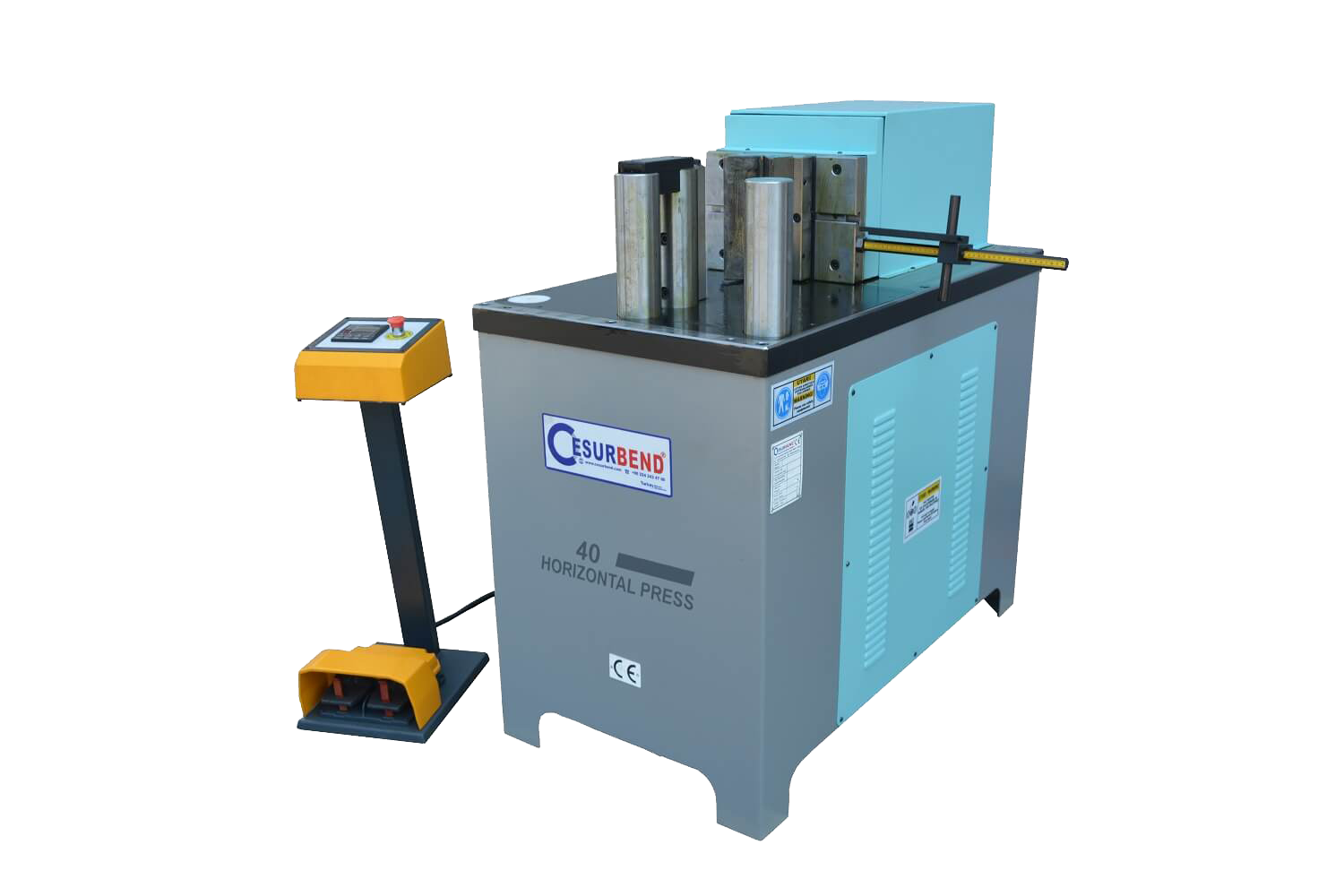

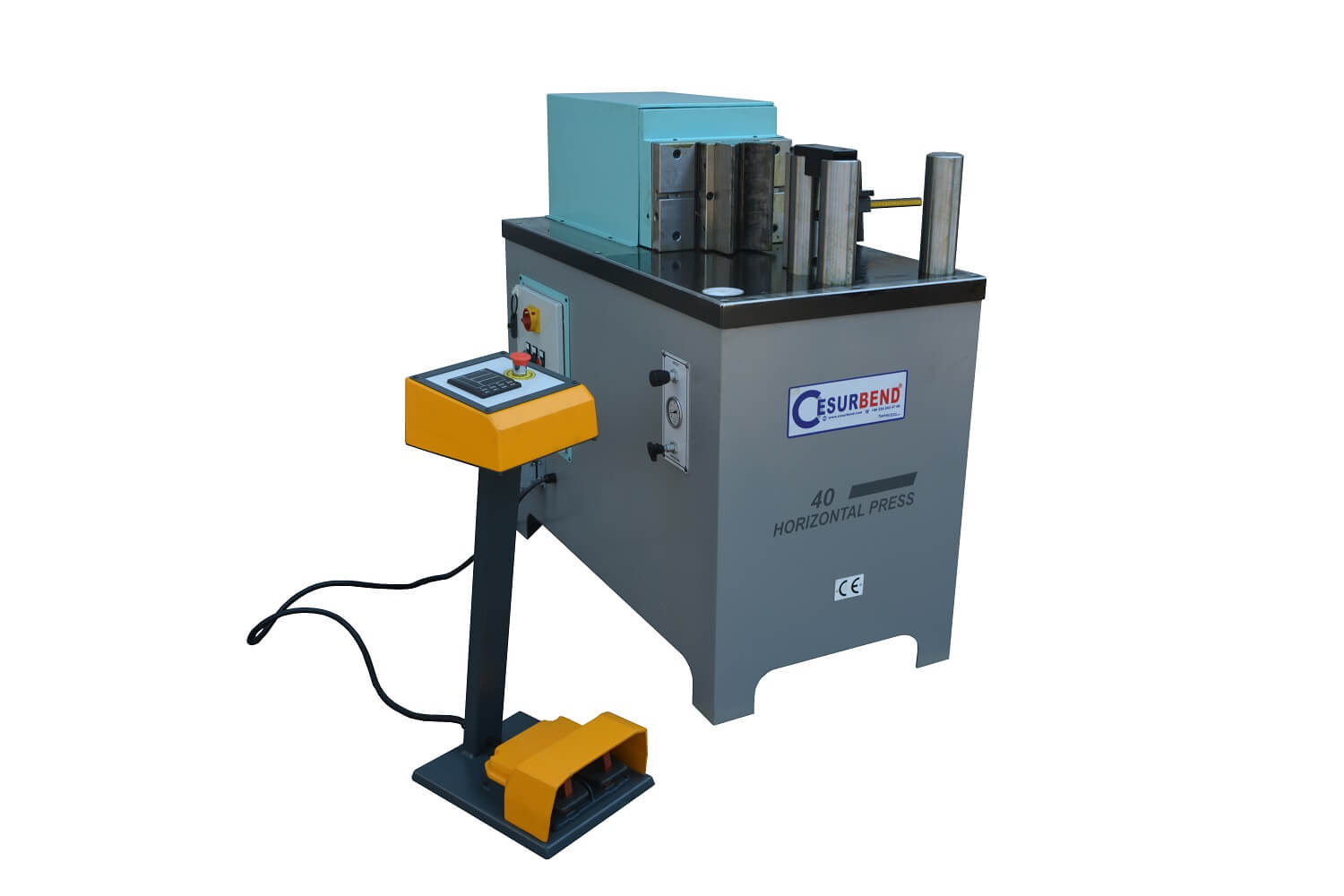

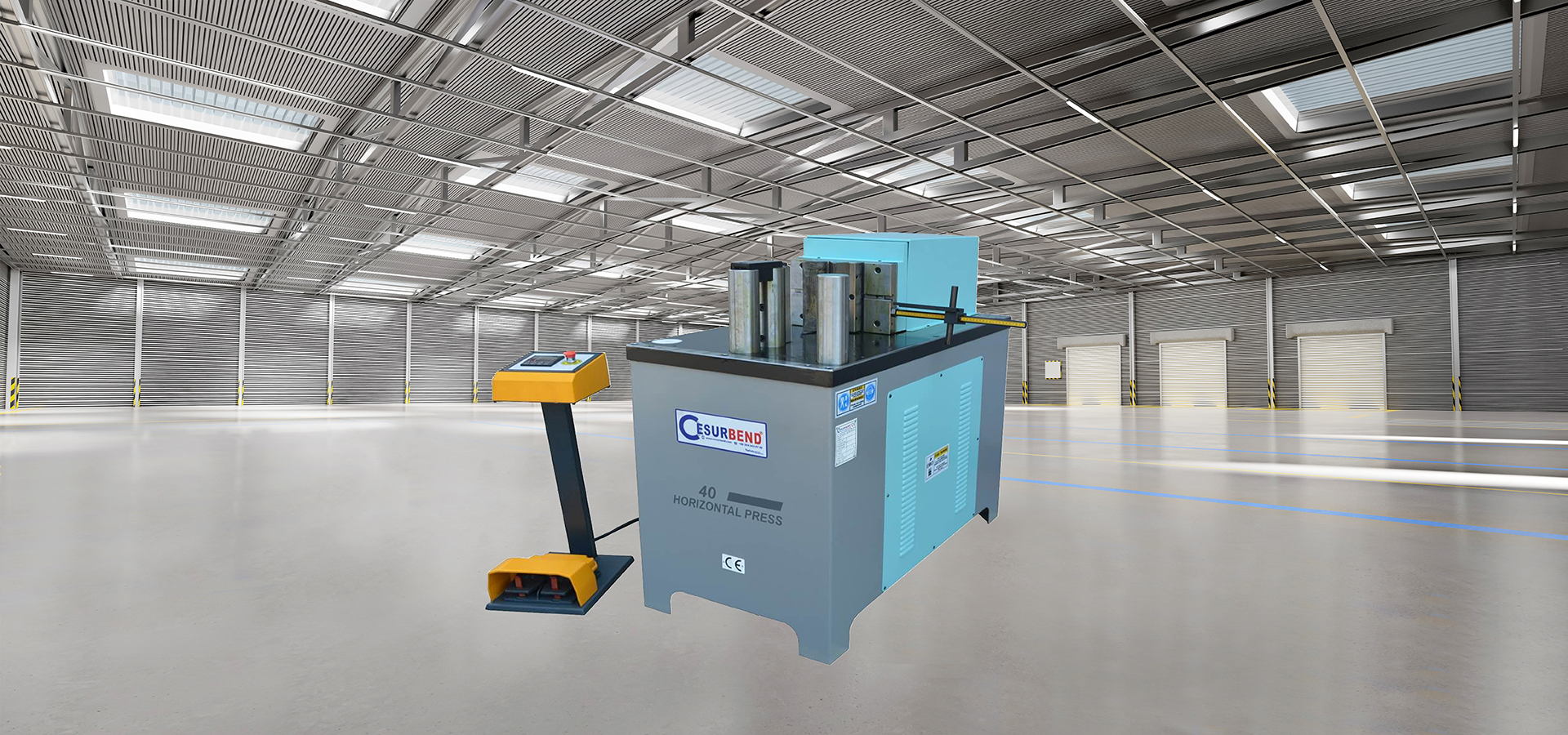

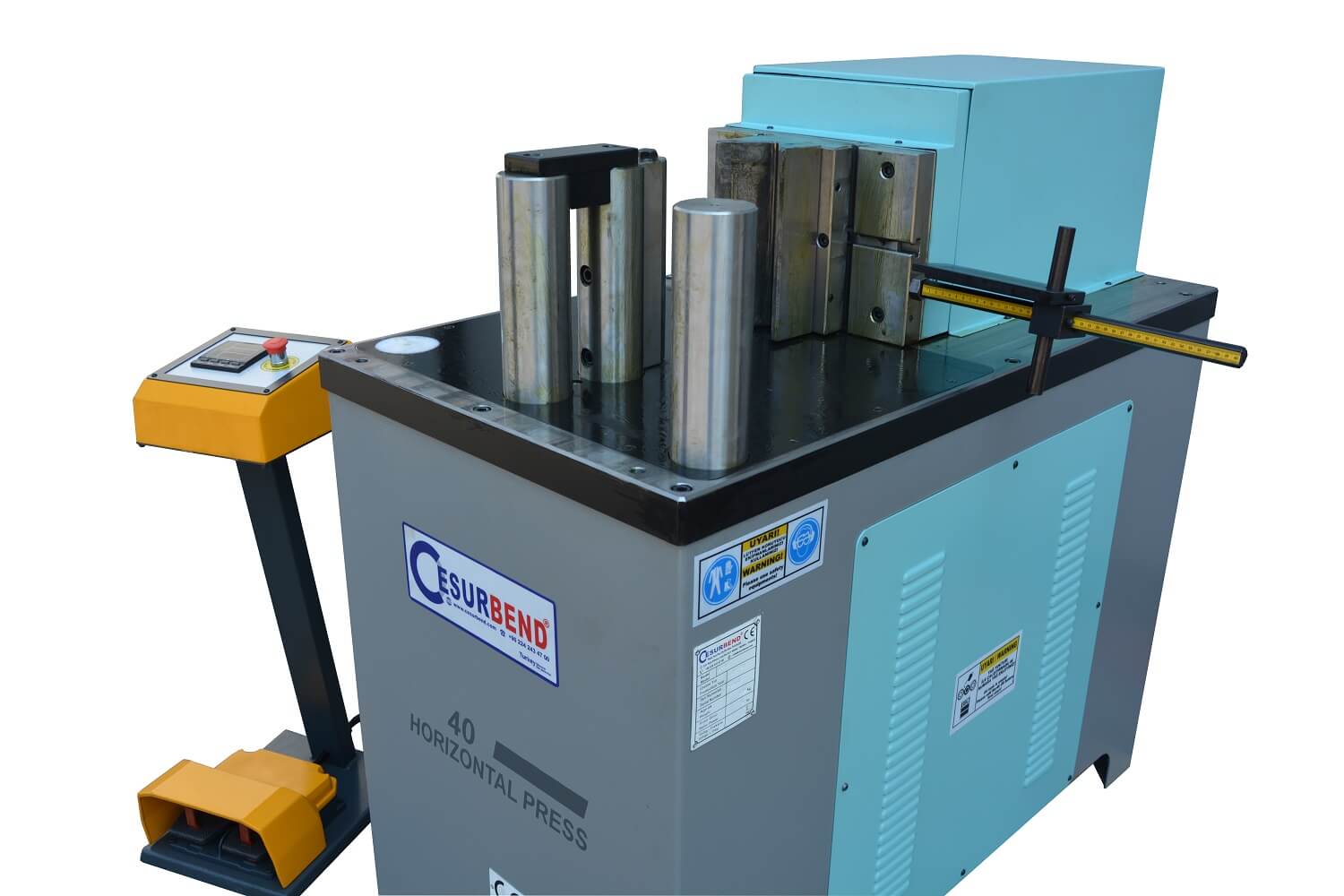

BP-40 Horizontal Press

Ask Us For More Information

Contact Us

Download Our Machine Brochure

Download
slide 1
slide 1
slide 1
slide 1
slide 1
  • Product Features :

  •

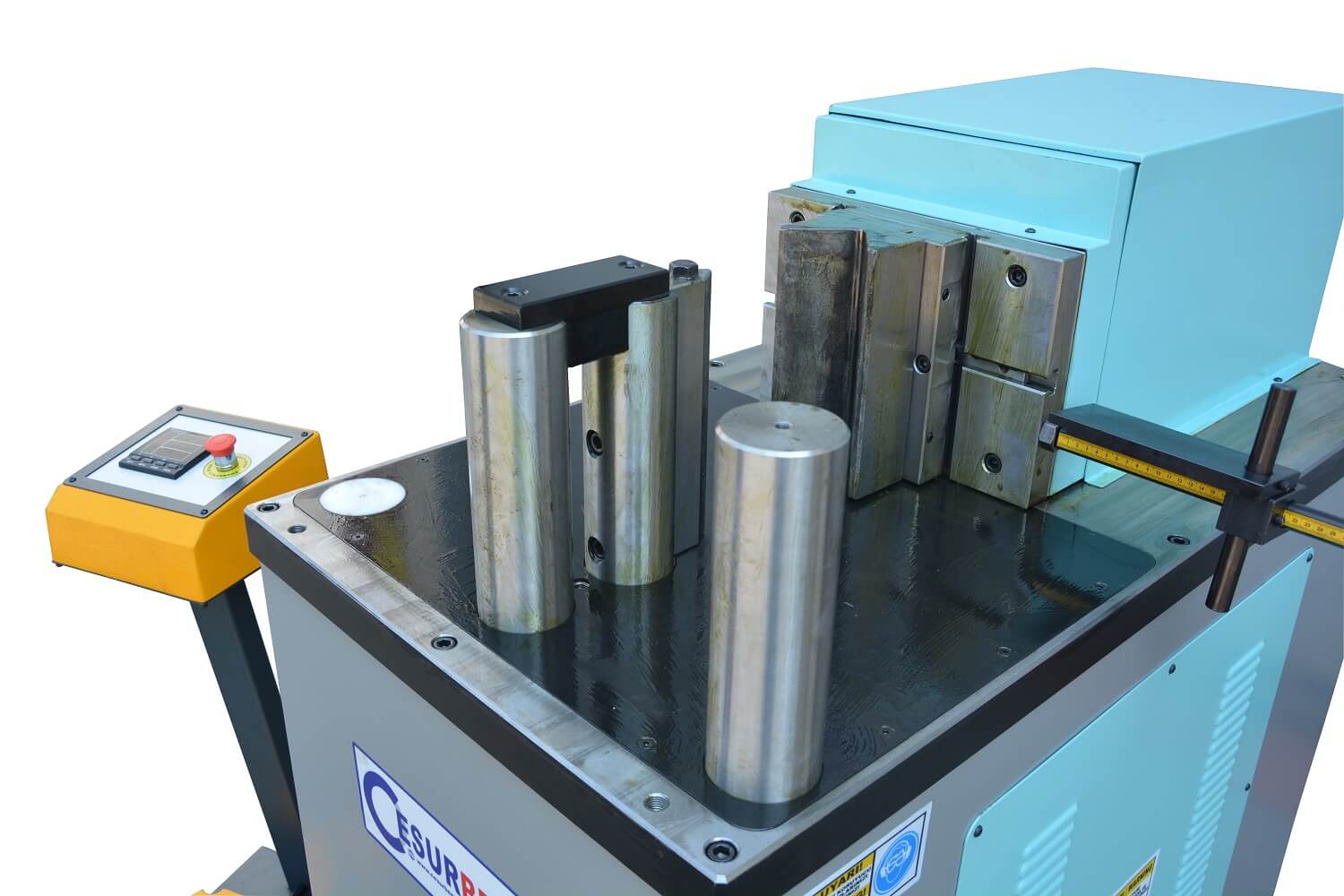

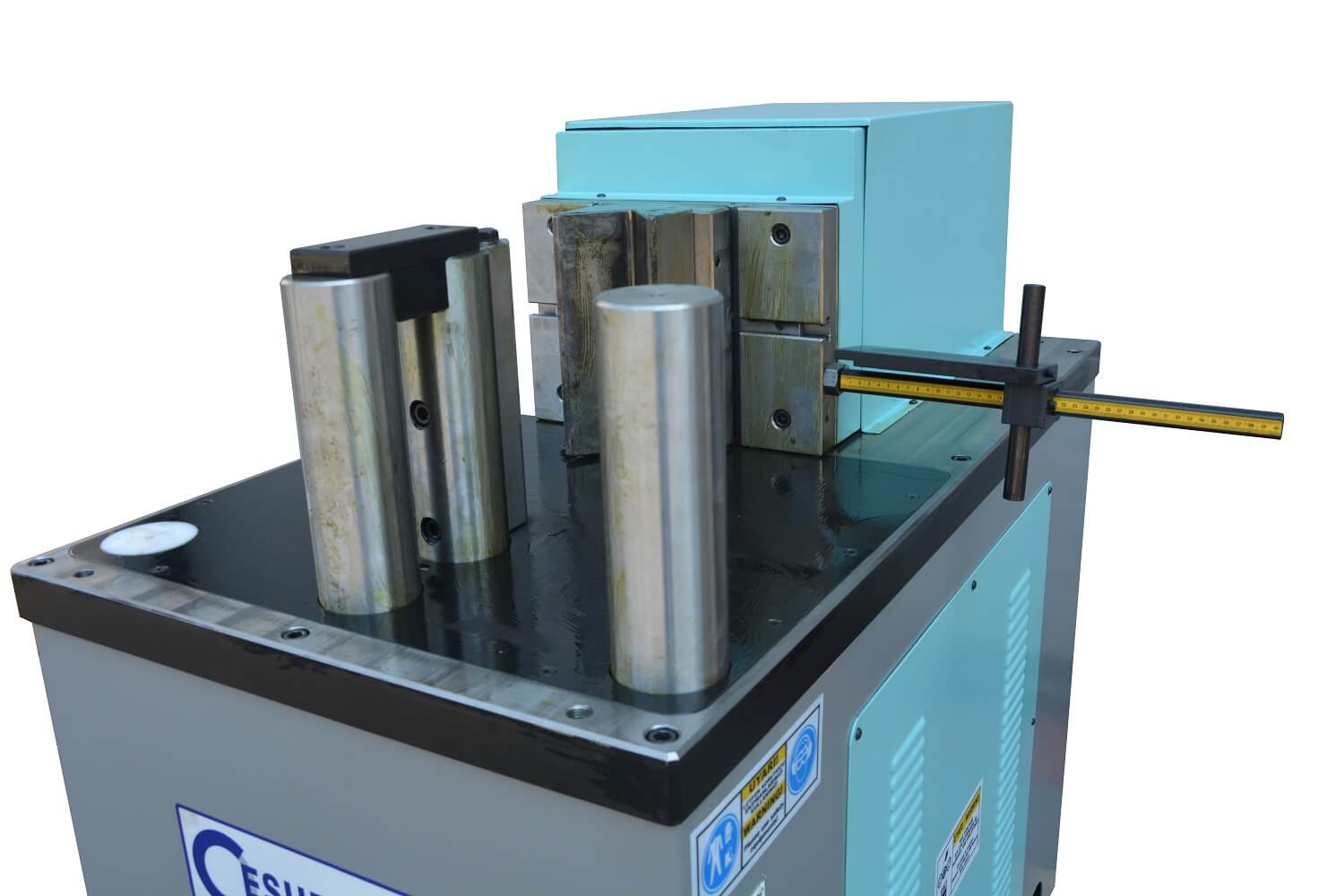

    -Hydraulically moving carriage of forged steel with double slides, suitably hardened, ground and protected by dust scrapers.
    -Moving beam slided on the table in rigid way.
    -Easy adjustable stroke distance from front side.
    -Working with foot pedal or two hand control.
    -Roomy side tool holder shelves beside the machine.
    -Die holder pins made in alloy steel with rapid conical change, hardened and ground to obtain a strong lock.


Technical Information
  • Model
  • BP-40 Horizontal Press
  • Workbench dimensions (mm)
  • 620x1050
  • Mobile punch operating speed (m/min.)
  • 470
  • Min.Max. Mobile and fixed pins height (mm)
  • 120/370
  • Max. stroke of mobile punch (mm)
  • 250
  • Advance and return speed(m/min.)
  • 1750/2000
  • Mobile and fixed pins height (mm)
  • 120
  • Mobile and fixed pins diameters (mm)
  • 55/63
  • Max. operating pressure in hydraulic circuit
  • 250
  • Max. operating pressure (ton)
  • 40
  • Height of workbench from the ground(mm)
  • 930
  • Engine Power (kW)
  • 4
  • Noise level(db)
  • 70
  • Hydraulic oil tank capacity (lt)
  • 70
  • Machine Width (mm)
  • 1150
  • Machine Length (mm)
  • 700
  • Machine Height (mm)
  • 950
  • Machine Weight (kg)
  • 920
