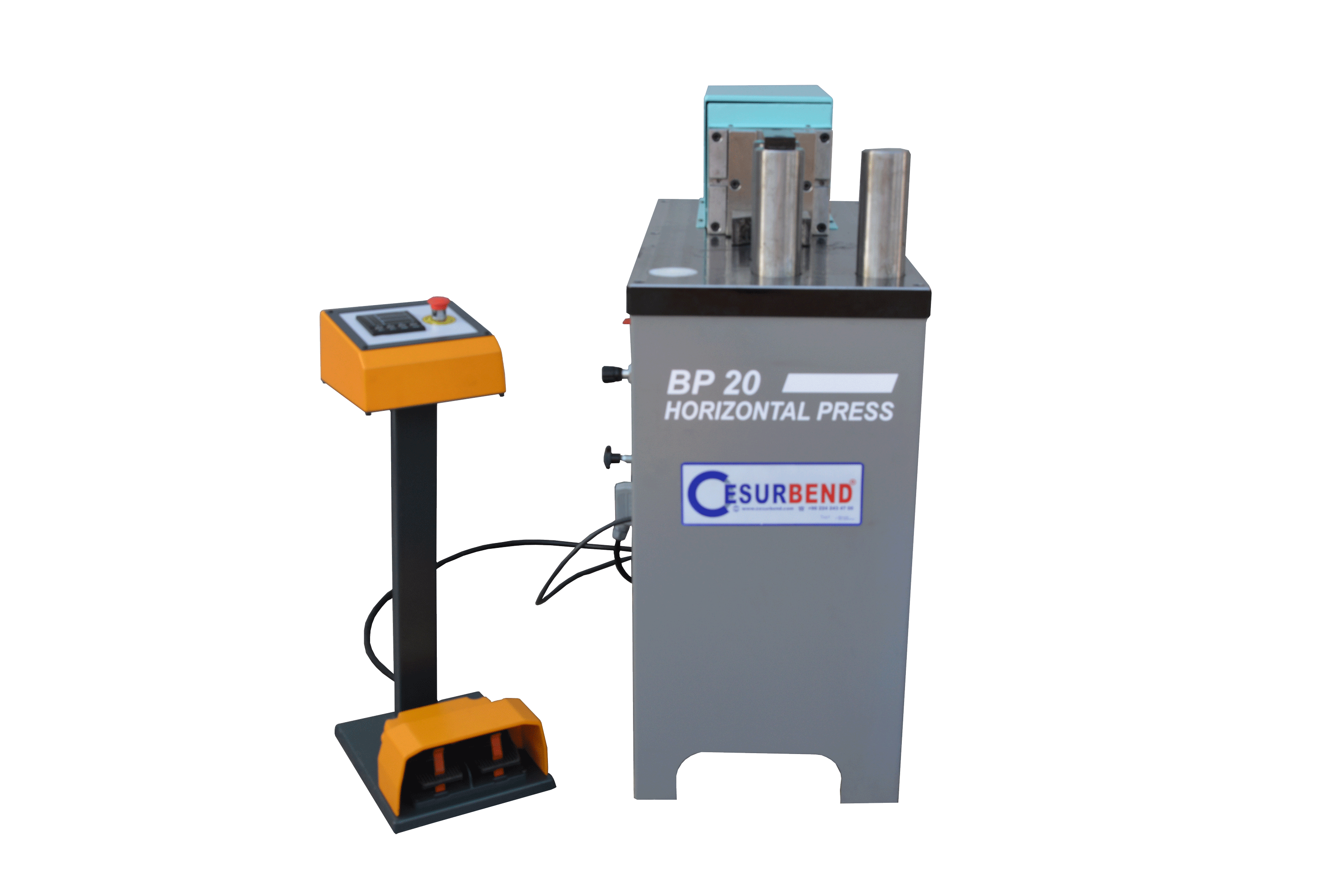

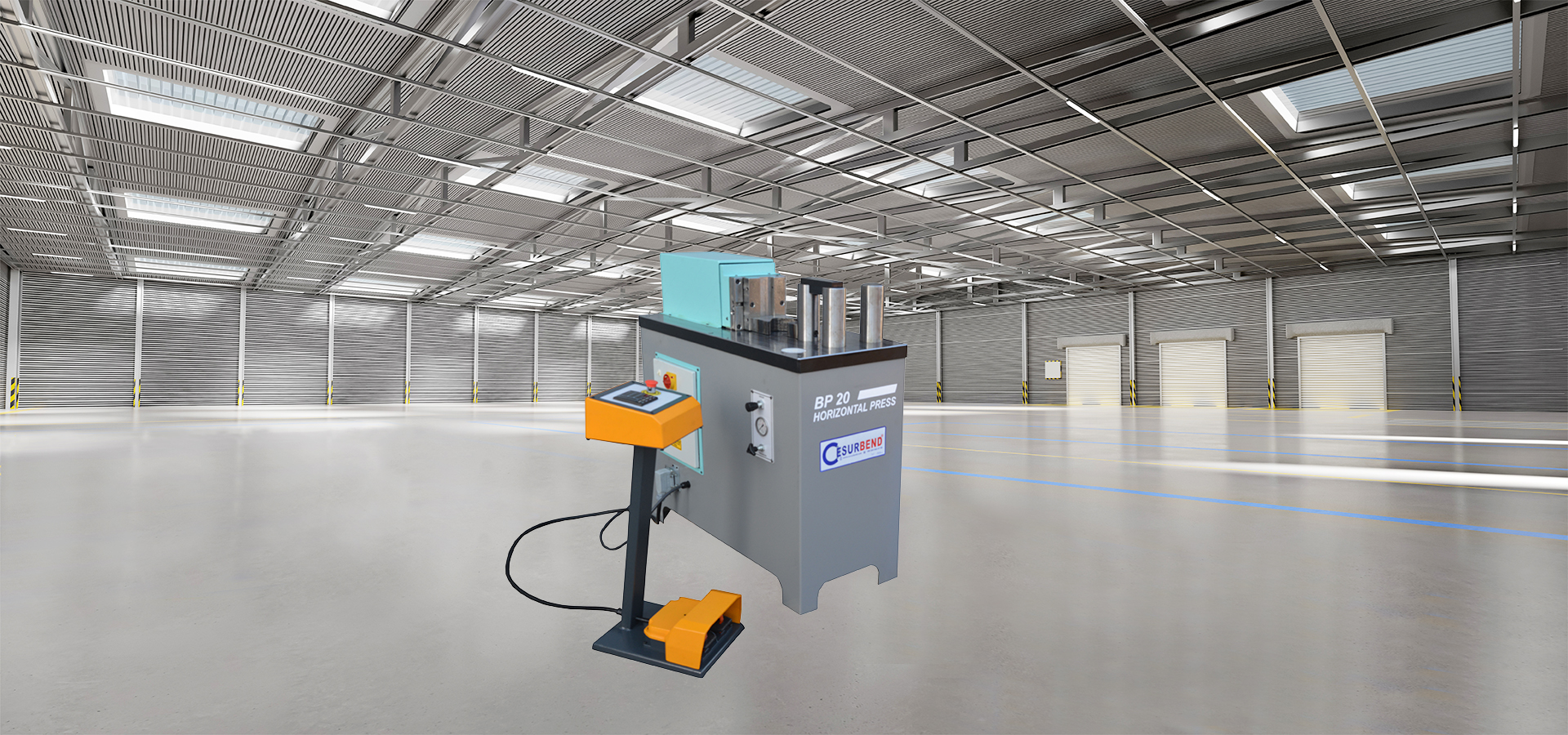

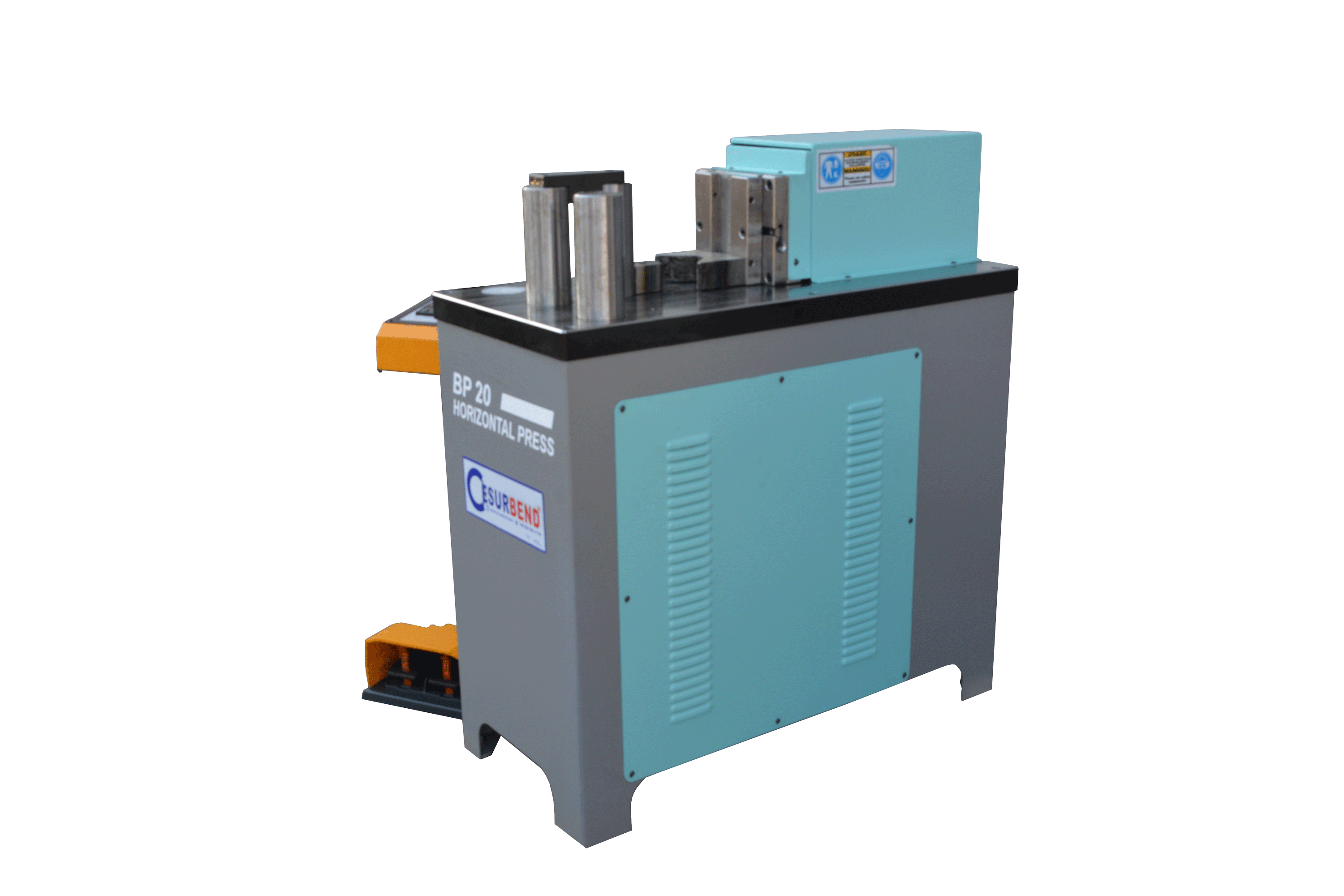

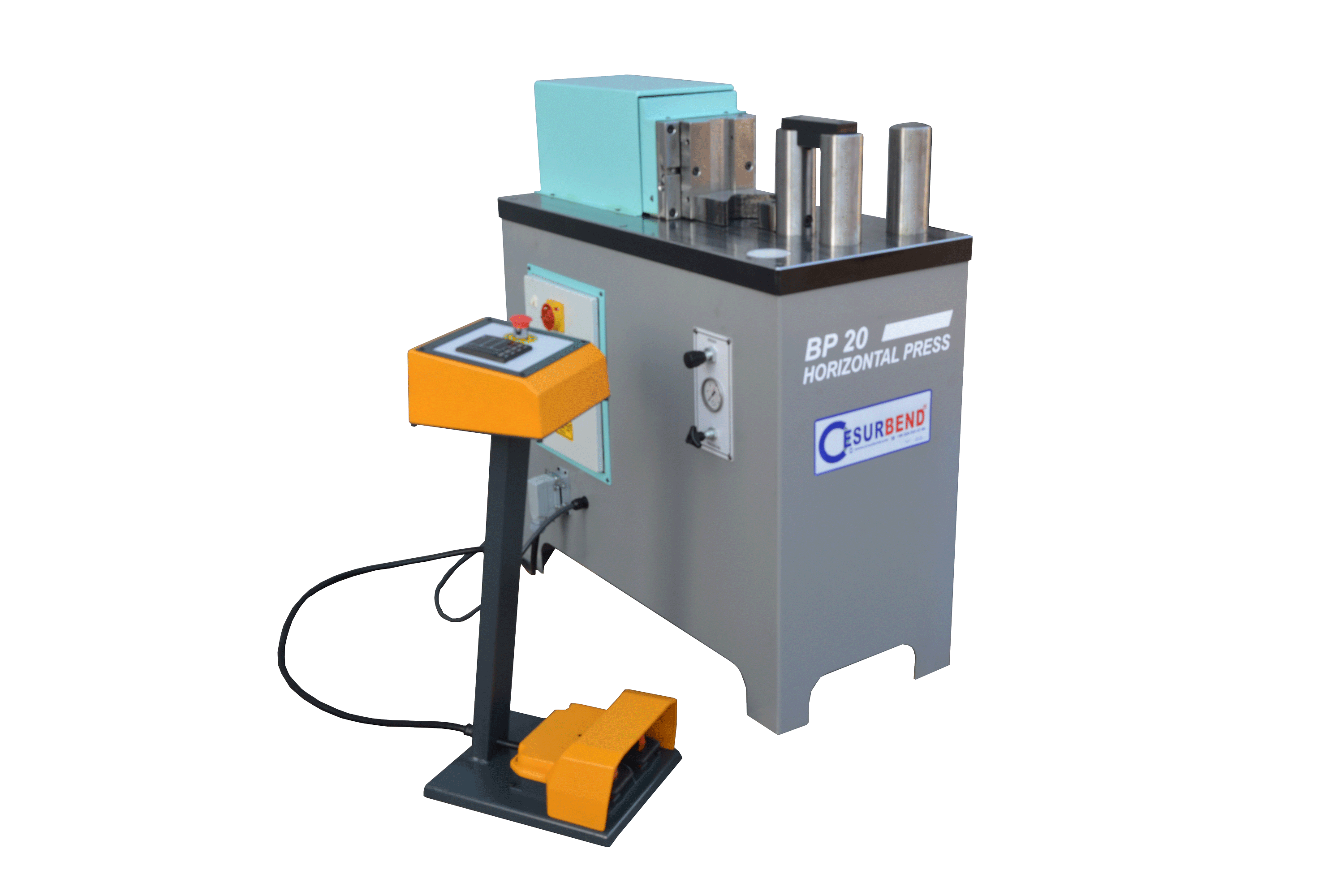

BP-20 Horizontal Press
Ask Us For More Information
Contact UsDownload Our Machine Brochure
Download
- Product Features :

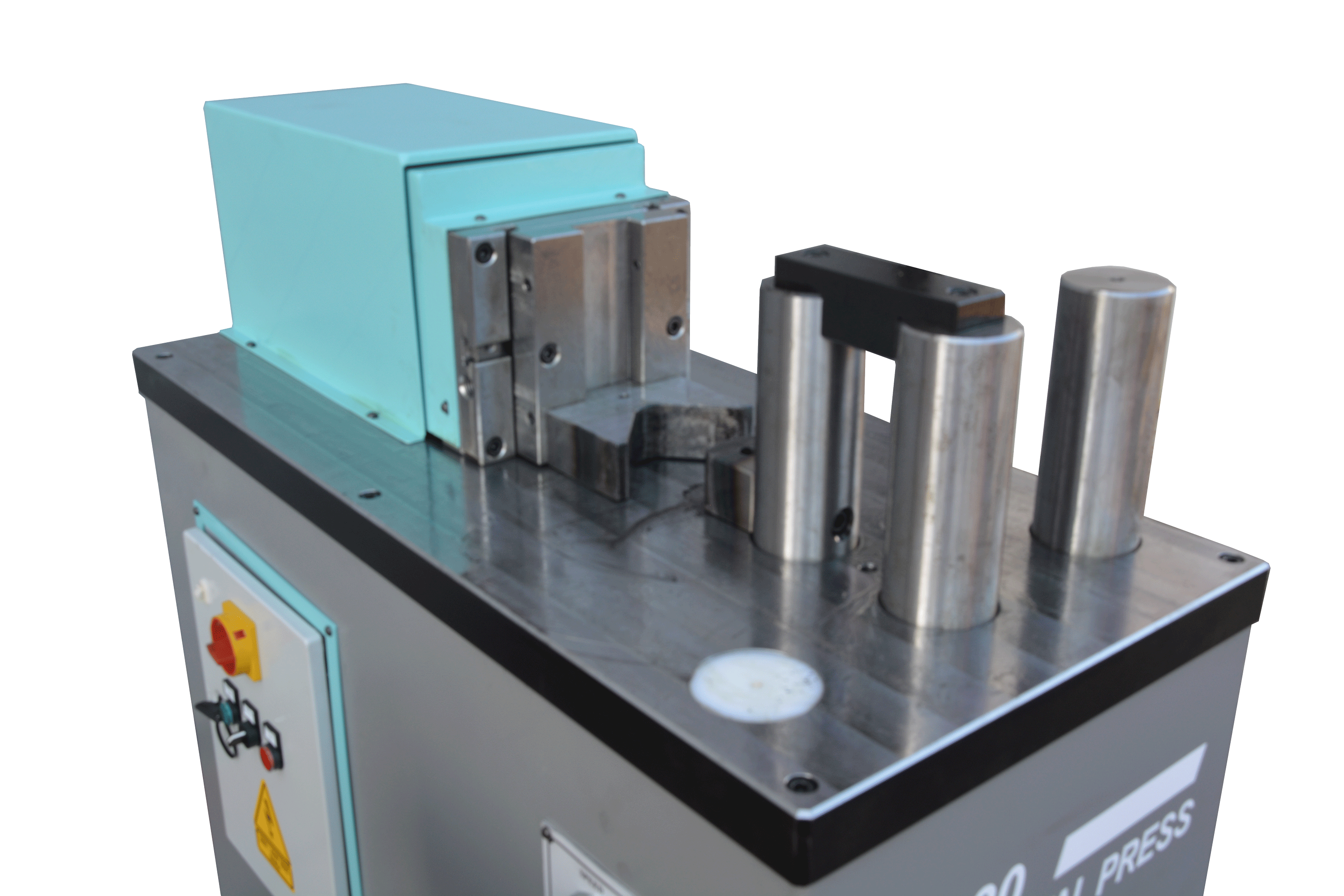

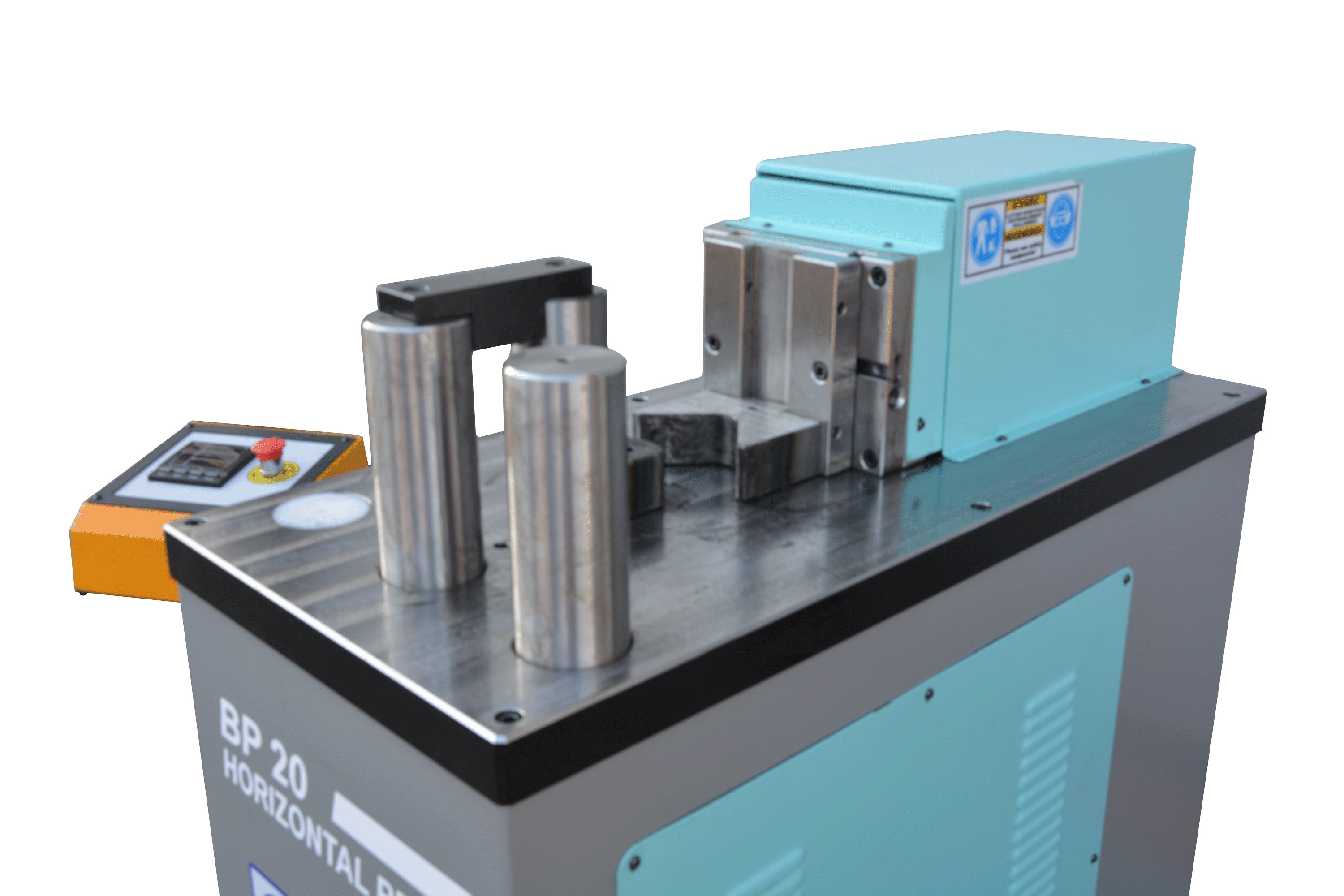

-Hydraulically moving carriage of forged steel with double slides, suitably hardened, ground and protected by dust scrapers. -Moving beam slided on the table in rigid way.-Easy adjustable stroke distance from front side.-Working with foot pedal or two hand control.-Die holder pins made in alloy steel with rapid conical change, hardened and ground to obtain a strong lock.
Technical Information
- Model
- BP-20 Horizontal Press
- Workbench dimensions (mm)
- 500x1000
- Max. stroke of mobile punch (mm)
- 190
- Bending Capacity (mm)
- 200
- Working Speed (mm/sec.)
- 9
- Hydraulic oil tank capacity (lt)
- 20
- Noise level(db)
- 70
- Working Pressure (ton)
- 20
- Engine Power (kW)
- 2.2
- Machine Width (mm)
- 480
- Machine Length (mm)
- 1250
- Machine Height (mm)
- 900
- Machine Weight (kg)
- 650

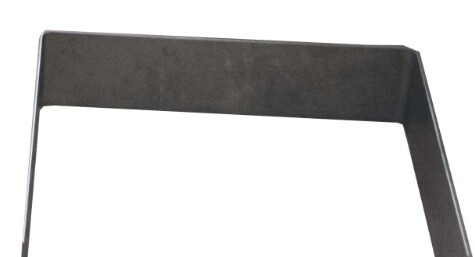

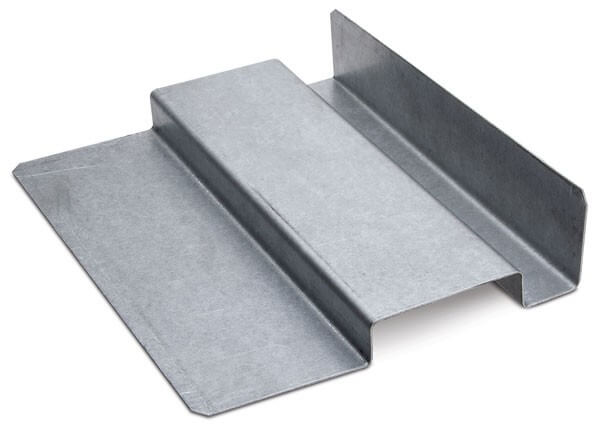

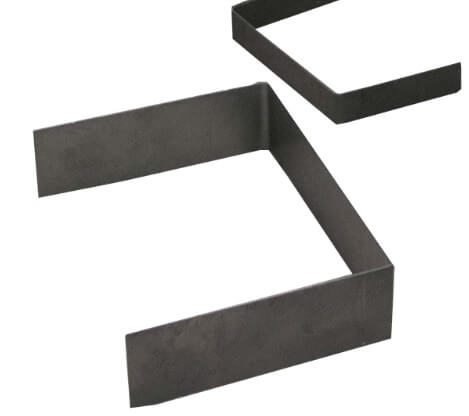

Usage Areas
