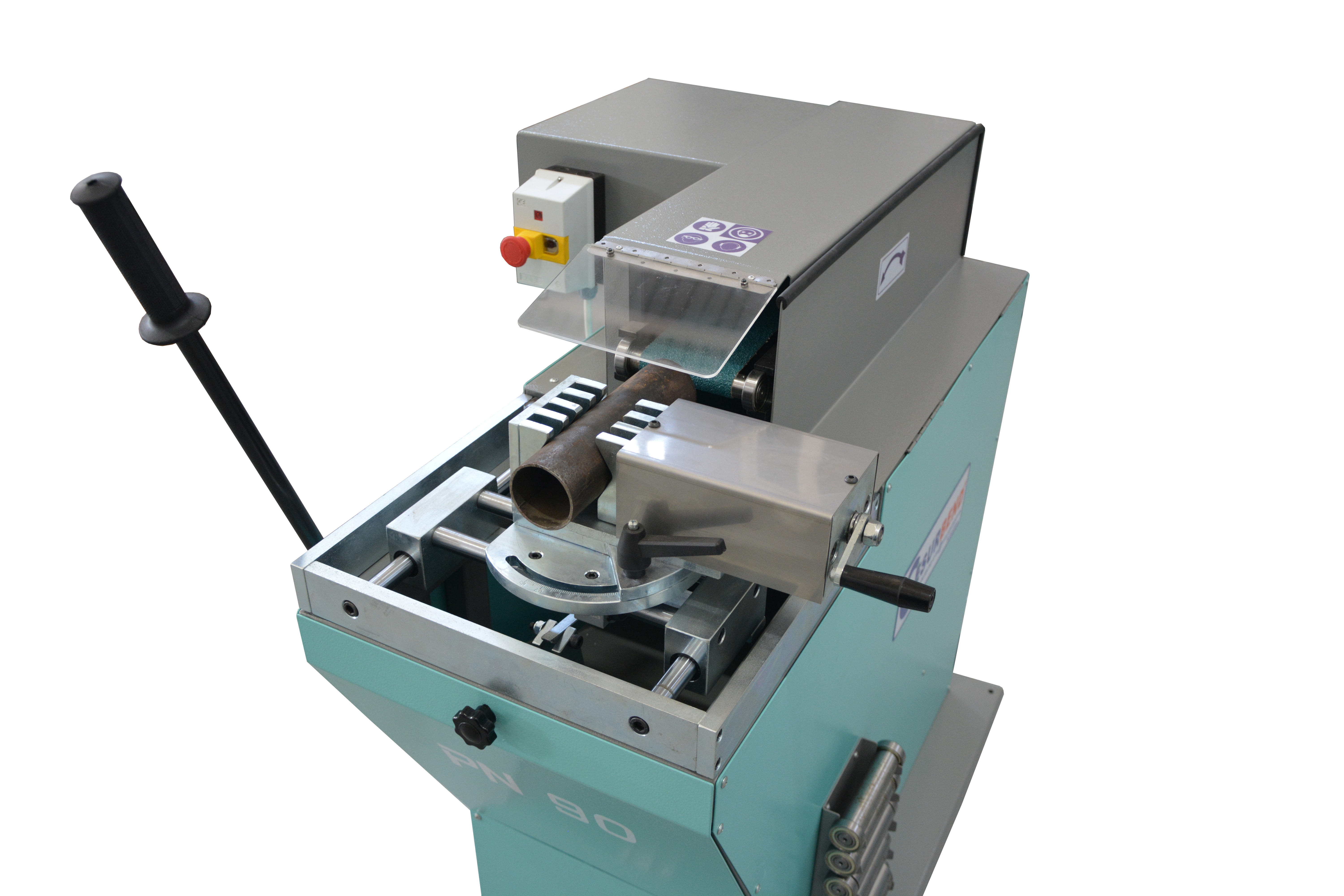

PN-90 Pipe & Tube Notching Machine

Ask Us For More Information

Contact Us

Download Our Machine Brochure

Download
slide 1
slide 1
slide 1
slide 1
slide 1
  • Product Features :
  •


    -Charge to easily ability to open suitable dovetails according to the pipe and tube diameters with the help of processing drum.
    -Ability to tighten and loosen the parts quickly as a result of moving clamp.
    -Ability to opening dovetails up to 50.
    -Oppurtunity of welding the pipe to 4" pipe.
    -Double-sided fence with a measurement accuracy of the system.

    *Optional Pneumatic Clamping


Technical Information
  • Model
  • PN-90 Pipe & Tube Notching Machine
  • Capacity (mm)
  • 17-90
  • Engine Power (kW-d/dk)
  • 3-2800
  • Mandrel Diameters (Ø)
  • 19-21-25-32-38-42-48-51-60-76
  • Abrasive Dimension (mm)
  • 1250x100
  • Machine Width (mm)
  • 1000
  • Machine Length (mm)
  • 1000
  • Machine Height (mm)
  • 1150
  • Machine Weight(kg)
  • 200
