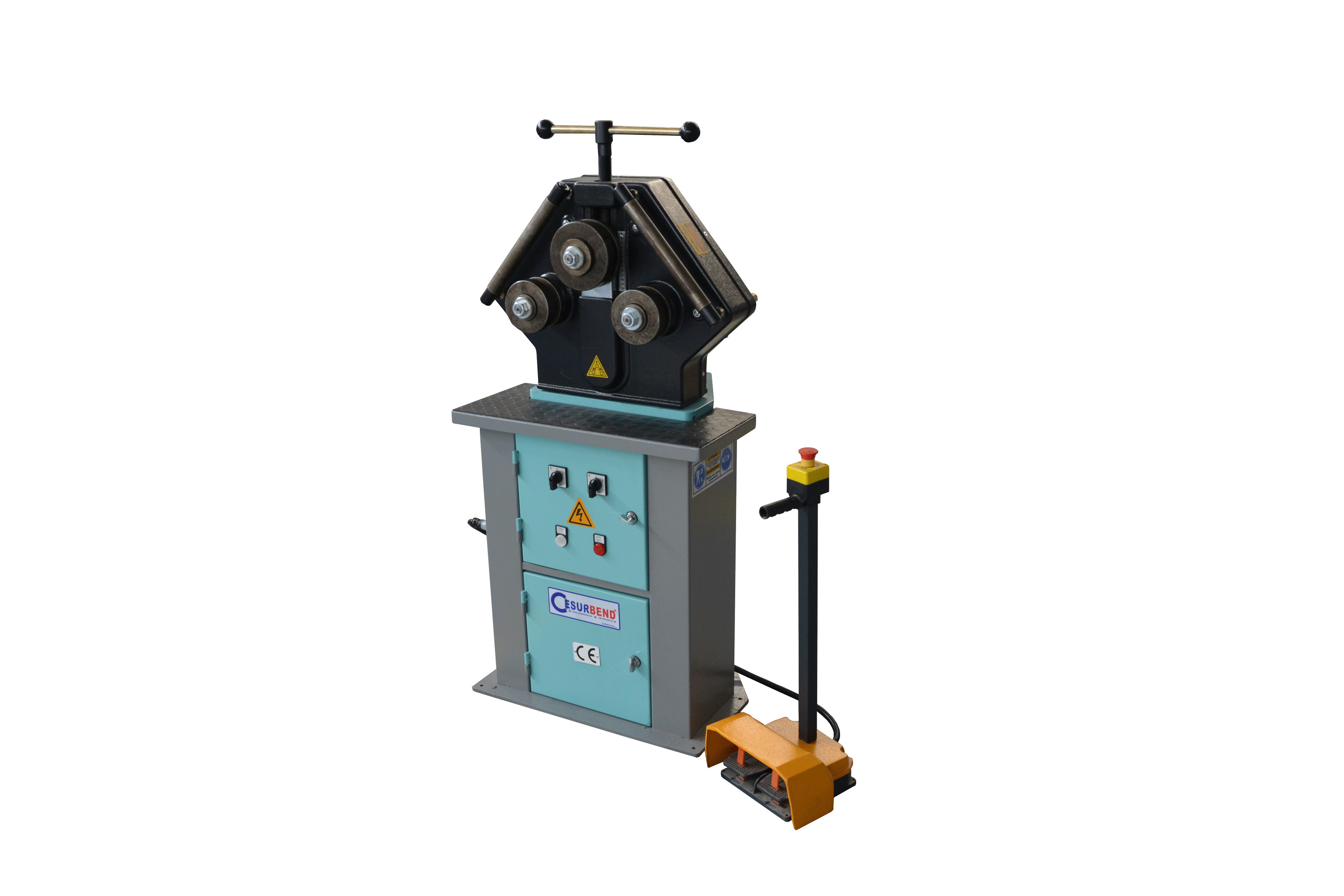

PB-30 Three Roll Pipe and Tube Bending Machine

Ask Us For More Information

Contact Us

Download Our Machine Brochure

Download
slide 1
slide 1
slide 1
slide 1
slide 1
  • Product Features :

  •
    STANDARD EQUIPMENTS

    • Steel frame
    • 2 Bottom rolls powered by gear system.
    • Its powered by a gear system driven by gearbox
    directly.
    • Top roll is idle ( free turning )
    • Hardened rolls
    • Rolls shafts are special steel material hardened and
    ground
    • Double speed motor
    • Standard rolls
    • Adjustable guide rolls
    • Horizontal and vertical working position


     OPTIONAL EQUIPMENTS

    • Pipe/Tube bending rolls
    • Special profile bending rolls
    • Angle bending rolls
    • Digital readout
    • Special lateral angle guide rolls


Technical Information
  • Model
  • PB-30 Three Roll Pipe and Tube Bending Machine
  • Shift Diameters (mm)
  • 30
  • Bottom Rolls Diameters (mm)
  • 118
  • Upper Roll Diameters (mm)
  • 148
  • Working Speed (m./min)
  • 3-6
  • Engine Power (kW)
  • 0.70-0.85
  • Machine Width (mm)
  • 500
  • Machine Length (mm)
  • 650
  • Machine Height (mm)
  • 1400
  • Machine Weight (kg)
  • 215
Capacity Chart
  • No
  • Profile Type
  • Size
  • Min. Dia
  • Notes
  • 1
  • 50x10
    20x6
  • 800
    300
  • Standard Rolls
  • 2
  • 80x15
    30x6
  • 700
    400
  • Standard Rolls
  • 3
  • 30x30
    10x10
  • 900
    200
  • Standard Rolls
  • 4
  • Ø30
    Ø10
  • 900
    200
  • Optional Rolls
  • 5
  • Ø60x1,5
    Ø25x1,5
  • 1000
    600
  • Optional Rolls
  • 6
  • 1 1/2”x2,9
    1/4”x1,8
  • 600
    300
  • Optional Rolls
  • 7
  • 50x30x3
    40x20x2
  • 1200
    800
  • Optional Rolls
  • 8
  • 40x3
    30x2
  • 1200
    800
  • Optional Rolls
  • 9
  • 40x40x5
    30x30x4
  • 600
    300
  • Optional Rolls
  • 10
  • 35x35x5
    30x30x4
  • 600
    400
  • Optional Rolls
  • 11
  • 50x6
    20x3
  • 600
    400
  • Standard Rolls

  • 12
  • 50x6
    20x3
  • 600
    400
  • Standard Rolls

  • 13
  • 50x6
    20x3
  • 600
    400
  • Standard Rolls
